Hypersonic Missiles:

Advanced weapons systems known as hypersonic missiles are created to travel at speeds exceeding Mach 5 (five times the speed of sound) or higher. They represent a significant advancement in military technology because of their capacity for unpredictable manoeuvring and quick, high-precision strikes on targets.

Any object travelling at a speed that is five times faster than the speed of sound is considered to be "hypersonic" in the field of aerodynamics. A hypersonic aircraft travels at a speed of roughly 3000 miles per hour. The term "Mach 5" speed is another name for hypersonic speed. Low hypersonic, hypersonic, and high hypersonic are the three speed levels. The X-15 is an example of a low hypersonic aircraft. The aircraft's speed in relation to the sound speed is known as the Mach number. Supersonic travels at Mach 1.2 to 5, while hypersonic travels at Mach 5 to 10.

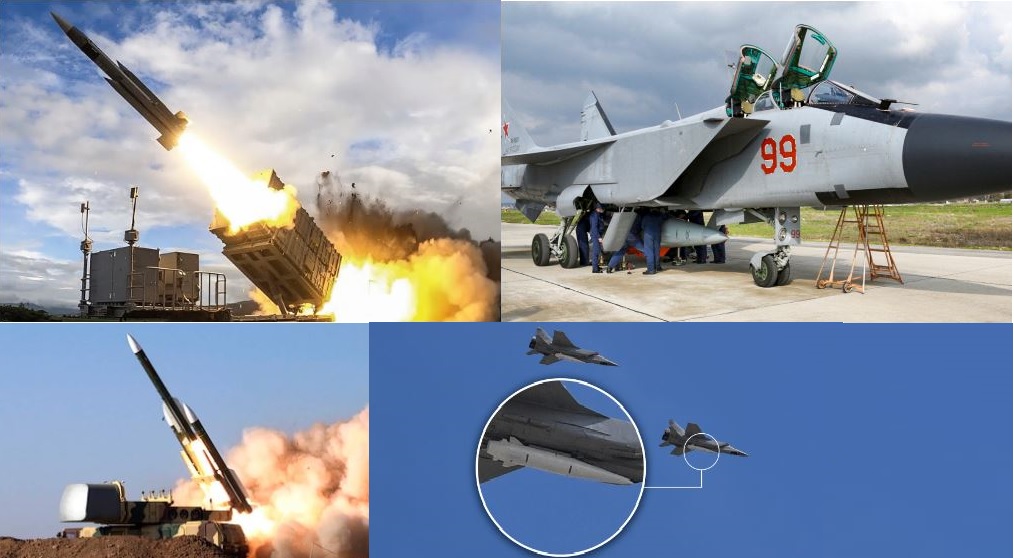

Hypersonic travel has several uses, although the technology is primarily employed in hypersonic glide vehicles (HGVs) and hypersonic cruise missiles (HCMs). Three nations—Russia, China, and the United States—are working to build hypersonic weapons as of 2021. HGVs, which fly at lower altitudes than ballistic missiles, are launched using rockets. HCMs are propelled by "Scramjet" engines that allow them to travel faster and at higher altitudes than cruise missiles. The illustration shows a use for hypersonic missiles.

The engineering problems and fundamental components of hypersonic missile technology are numerous.

Here are the fundamental aspects:

Propulsion: Modern propulsion systems enable hypersonic missiles to travel at such high speeds. Scramjet propulsion, which stands for "supersonic combustion ramjet," is one such technique. Scramjets can maintain continuous high-speed flight because they run at supersonic speeds and compress incoming air before combustion. Utilising rocket-based combined cycle engines (RBCC), which combine scramjet and conventional rocket technology for increased effectiveness and performance, is an alternative strategy.

Aerodynamics: Due to their high speeds, hypersonic missiles must overcome severe aerodynamic obstacles. High temperatures, powerful aerodynamic forces, and air friction are all experienced by them. In order to reduce drag, control heat loads, and guarantee stability during flight, engineers use cutting-edge materials and design strategies. To maximise aerodynamic performance, they frequently use complex geometries, including pointed leading edges and streamlined forms.

Thermal Protection: The air compression and friction caused by the high speeds produce a lot of heat. Specialised thermal protection systems are employed on hypersonic missiles to guard against structural failure or damage brought on by high temperatures. To properly dissipate heat, these systems frequently use cutting-edge components including carbon-carbon composites, ceramic coatings, and actively cooled structures.

Guidance, Navigation, and Control (GNC): Hypersonic missiles must have precise guidance and control in order to reach their intended targets. They use cutting-edge sensors to determine the position, velocity, and attitude of the missile, including inertial measurement units, GNSS, and occasionally even onboard sensors that offer real-time data. This data is interpreted by sophisticated algorithms and control systems to quickly alter the missile's trajectory and guarantee accuracy.

Materials and Manufacturing: Materials that can survive high speeds, temperatures, and aerodynamic forces are needed for hypersonic missiles. Advanced alloys, composite materials, ceramics, and thermal protective coatings are a few of them. Design production is made possible by manufacturing processes like additive manufacturing (3D printing). Structures that are lightweight and robust are made possible by the use of cutting-edge materials and production techniques.

Communication and Data Links: In order to get the most recent targeting information or modify their flight path, hypersonic missiles frequently need to communicate in real-time with command posts or other military equipment. Effective command and control of these high-speed weapons is made possible by secure and dependable communication systems, including cutting-edge data lines and encryption techniques.

Hypersonic missile benefits:

The advantages of hypersonic missiles are as follows:

1. Hypersonic missiles move at a velocity that is five times that of sound waves.

2. Compared to cruise and ballistic missiles, HGVs are more affordable.

3. Because HGVs fly at lower altitudes, their adversarial radars are less likely to pick them up.

4. HCMs fly higher than cruise missiles and at a lesser height than ballistic missiles. Additionally, HCMs move faster than cruise missiles.

5. Hypersonic aircraft course-correct as they fly between the source and the target.

Hypersonic missiles' drawbacks:

The cons or drawbacks of hypersonic missiles are listed below:

1. Due to drag from the surrounding air, hypersonic missiles' average speed is lower than that of ballistic missiles.

2. The materials of HGV missiles degrade and change the aerodynamics as a result of intense heating.

3. Communication between the missile, the satellite, and other external control systems is obstructed by the intense heat. As a result, hypersonic missile control is restricted.

What distinguishes hypersonic missiles from the majority of conventional missiles?

First, these missiles move at incredible speeds that greatly reduce or completely obliterate defence response times. Second, these missiles have different manoeuvrability and trajectory capabilities than a typical intercontinental ballistic missile (ICBM). They are more difficult or impossible to intercept from ground-based defence systems since they can fly below the line-of-flight detection capability. The prediction of their ultimate intended target is more challenging because they are also fainter and more challenging to see from above.

Finally, it's critical to understand the political stance that the United States has adopted regarding hypersonic technologies as a conventional weapon, whereas other nations have equipped these platforms with nuclear weapons. The Kinzhal missile from Russia has a quasi-ballistic hypersonic trajectory and is an aeroballistic missile. It is the first time a hypersonic weapon has allegedly been used in a theatre of conflict. Although it is debatable whether the use of this missile will influence the course of the war on Ukraine, it sends a clear message of escalation and cannot be justified.

What is the state of hypersonic engineering in the United States?

For many years, the United States has been designing, creating, and testing hypersonic systems. In actuality, all spacecraft that return to Earth from orbit or space do so at hypersonic speeds. In the early 2000s, the NASA X-43 experimental unmanned hypersonic aircraft performed flights at Mach 7 and Mach 10, and in 2010, the Boeing X-51 Waverider again showed hypersonic flight. Sincerely, we let up on the gas after that. Through consistent investment, the creation of test and manufacturing facilities, and workforce development, other nations came to see the strategic importance of this technology and have since assumed the lead. We must not only catch up, but also significantly increase our capacity.

Both offensive and defensive capabilities are being sought after by the US. Both are crucial for both gaining technical superiority and deterrence. Hypersonic boost-glide vehicles or hypersonic air-breathing cruise missiles are the two main types of hypersonic platforms. While still moving at hypersonic speeds, conventional intercontinental ballistic missiles have a predictable, parabolic trajectory that makes them simpler to intercept. With the advantage of manoeuvrability in the midcourse/glide and terminal phases and a low-altitude trajectory that makes them difficult to spot and virtually impossible to intercept, boost-glide and cruise missiles fly at hypersonic speeds. The armed forces are acquiring these capabilities quickly; the earliest delivery of these platforms is anticipated for late 2022, while 2023 and beyond are more likely.

What countries have hypersonic technology?

Both China and Russia have hypersonic-capable missiles on the battlefield, but Russia is the first to use one of these weapons in actual combat. Other nations, such as the United States, Australia, France, Germany, India, and North Korea, have tested or are currently working to develop hypersonic technology.

Expertise in a variety of engineering fields, such as aerodynamics, propulsion, materials science, guidance systems, and manufacturing, is necessary for developing hypersonic missile technology. The rapid response and precision striking capabilities of these missiles have the ability to fundamentally alter defence tactics, revolutionising military capabilities.
